SpringCloud:Seata处理分布式事务

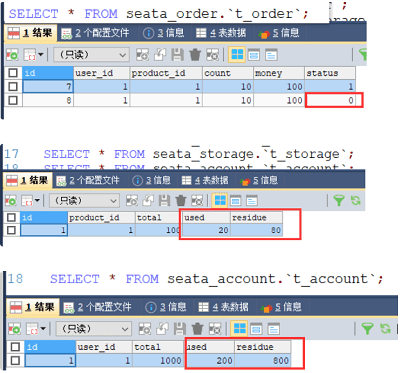

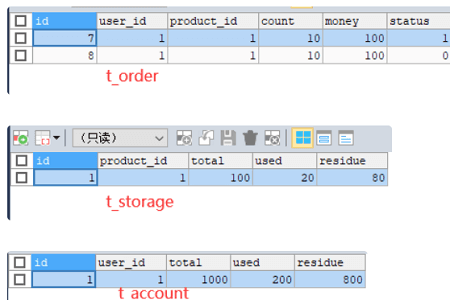

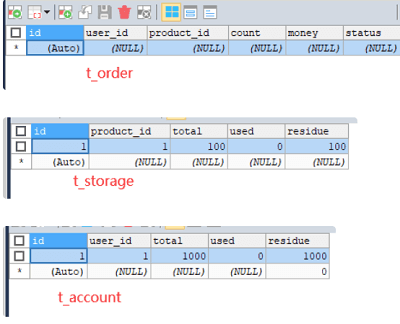

CREATE TABLE seata_order.`t_order` (
  `id` BIGINT(11) NOT NULL AUTO_INCREMENT PRIMARY KEY,
  `user_id` BIGINT(11) DEFAULT NULL COMMENT '用户id',
  `product_id` BIGINT(11) DEFAULT NULL COMMENT '产品id',
  `count` INT(11) DEFAULT NULL COMMENT '数量',
  `money` DECIMAL(11,0) DEFAULT NULL COMMENT '金额',
  `status` INT(1) DEFAULT NULL COMMENT '订单状态：0：创建中；1：已完结'
) ENGINE=INNODB AUTO_INCREMENT=7 DEFAULT CHARSET=utf8;

CREATE TABLE `seata_account`.t_account (
  `id` BIGINT(11) NOT NULL AUTO_INCREMENT PRIMARY KEY COMMENT 'id',
  `user_id` BIGINT(11) DEFAULT NULL COMMENT '用户id',
  `total` DECIMAL(10,0) DEFAULT NULL COMMENT '总额度',
  `used` DECIMAL(10,0) DEFAULT NULL COMMENT '已用余额',
  `residue` DECIMAL(10,0) DEFAULT '0' COMMENT '剩余可用额度'
) ENGINE=INNODB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8;

INSERT INTO seata_account.t_account(`id`, `user_id`, `total`, `used`, `residue`)  VALUES ('1', '1', '1000', '0', '1000');

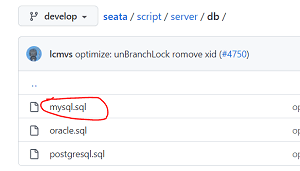

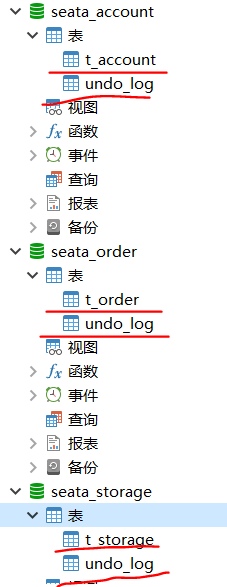

DROP TABLE IF EXISTS `undo_log`;
CREATE TABLE IF NOT EXISTS `undo_log`
(
    `branch_id`     BIGINT       NOT NULL COMMENT 'branch transaction id',
    `xid`           VARCHAR(128) NOT NULL COMMENT 'global transaction id',
    `context`       VARCHAR(128) NOT NULL COMMENT 'undo_log context,such as serialization',
    `rollback_info` LONGBLOB     NOT NULL COMMENT 'rollback info',
    `log_status`    INT(11)      NOT NULL COMMENT '0:normal status,1:defense status',
    `log_created`   DATETIME(6)  NOT NULL COMMENT 'create datetime',
    `log_modified`  DATETIME(6)  NOT NULL COMMENT 'modify datetime',
    UNIQUE KEY `ux_undo_log` (`xid`, `branch_id`)
) ENGINE = InnoDB
  AUTO_INCREMENT = 1
  DEFAULT CHARSET = utf8 COMMENT ='AT transaction mode undo table';

package com.atguigu.cloudalibaba.service.Impl;

import com.atguigu.cloudalibaba.dao.OrderDao;
import com.atguigu.cloudalibaba.domain.Order;
import com.atguigu.cloudalibaba.service.AccountService;
import com.atguigu.cloudalibaba.service.OrderService;
import com.atguigu.cloudalibaba.service.StorageService;
import io.seata.spring.annotation.GlobalTransactional;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;

@Service
@Slf4j
public class OrderServiceImpl implements OrderService {
    @Resource
    private OrderDao orderDao;

    @Resource
    private StorageService storageService;

    @Resource
    private AccountService accountService;

    /**
     * 创建订单->调用库存服务扣减库存->调用账户服务扣减账户余额->修改订单状态
     * 简单说：
     * 下订单->减库存->减余额->改状态
     */
    @Override
    //全局事务，发生异常进行回滚
    @GlobalTransactional(name = "lsp-create-order", rollbackFor = Exception.class)
    public void create(Order order) {

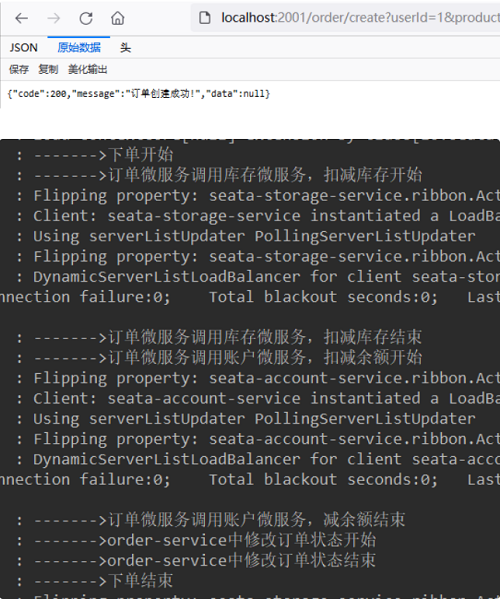

        log.info("------->下单开始");
        //本应用创建订单
        orderDao.create(order);

        //远程调用库存服务扣减库存
        log.info("------->订单微服务调用库存微服务，扣减库存开始");
        storageService.decrease(order.getProductId(),order.getCount());
        log.info("------->订单微服务调用库存微服务，扣减库存结束");

        //远程调用账户服务扣减余额
        log.info("------->订单微服务调用账户微服务，扣减余额开始");
        accountService.decrease(order.getUserId(),order.getMoney());
        log.info("------->订单微服务调用账户微服务，减余额结束");

        //修改订单状态为已完成
        log.info("------->order-service中修改订单状态开始");
        // 这里的话是不是应该是orderId？
        orderDao.update(order.getUserId(),0);
        log.info("------->order-service中修改订单状态结束");

        log.info("------->下单结束");
    }
}

{

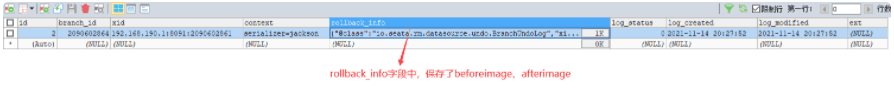

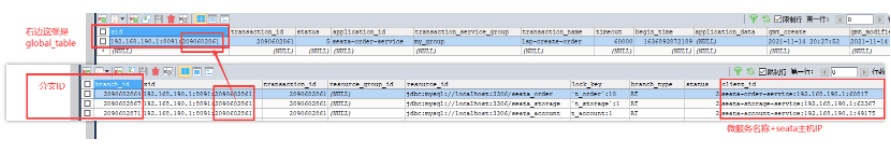

  "@class": "io.seata.rm.datasource.undo.BranchUndoLog",
  "xid": "192.168.190.1:8091:2090602861",
  "branchId": 2090602864,
  "sqlUndoLogs": [
    "java.util.ArrayList",
    [
      {
        "@class": "io.seata.rm.datasource.undo.SQLUndoLog",
        "sqlType": "INSERT",
        "tableName": "`t_order`",

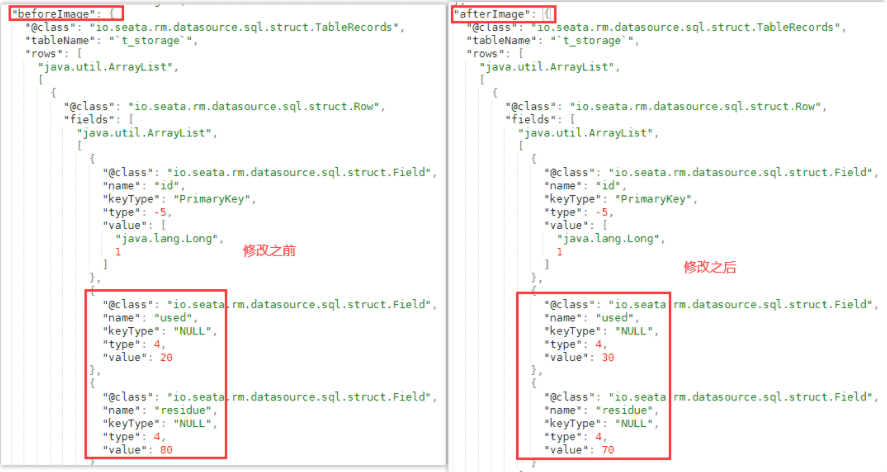

        "beforeImage": {
          "@class": "io.seata.rm.datasource.sql.struct.TableRecords$EmptyTableRecords",
          "tableName": "`t_order`",
          "rows": [
            "java.util.ArrayList",
            []
          ]
        },
        "afterImage": {
          "@class": "io.seata.rm.datasource.sql.struct.TableRecords",
          "tableName": "`t_order`",
          "rows": [
            "java.util.ArrayList",
            [
              {
                "@class": "io.seata.rm.datasource.sql.struct.Row",
                "fields": [
                  "java.util.ArrayList",
                  [
                    {
                      "@class": "io.seata.rm.datasource.sql.struct.Field",
                      "name": "id",
                      "keyType": "PrimaryKey",
                      "type": -5,
                      "value": [
                        "java.lang.Long",
                        10
                      ]
                    },
                    {
                      "@class": "io.seata.rm.datasource.sql.struct.Field",
                      "name": "user_id",
                      "keyType": "NULL",
                      "type": -5,
                      "value": [
                        "java.lang.Long",
                        1
                      ]
                    },
                    {
                      "@class": "io.seata.rm.datasource.sql.struct.Field",
                      "name": "product_id",
                      "keyType": "NULL",
                      "type": -5,
                      "value": [
                        "java.lang.Long",
                        1
                      ]
                    },
                    {
                      "@class": "io.seata.rm.datasource.sql.struct.Field",
                      "name": "count",
                      "keyType": "NULL",
                      "type": 4,
                      "value": 10
                    },
                    {
                      "@class": "io.seata.rm.datasource.sql.struct.Field",
                      "name": "money",
                      "keyType": "NULL",
                      "type": 3,
                      "value": [
                        "java.math.BigDecimal",
                        100
                      ]
                    },
                    {
                      "@class": "io.seata.rm.datasource.sql.struct.Field",
                      "name": "status",
                      "keyType": "NULL",
                      "type": 4,
                      "value": 0
                    }
                  ]
                ]
              }
            ]
          ]
        }
      }
    ]
  ]
}
